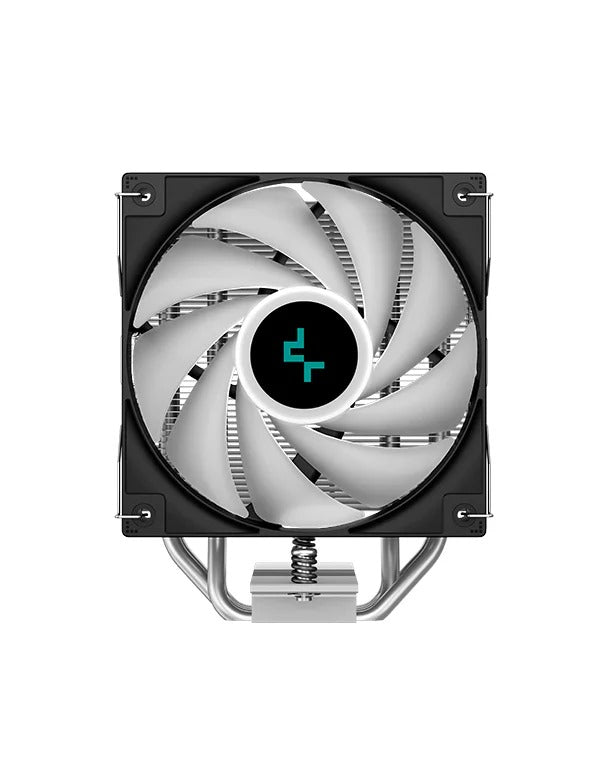

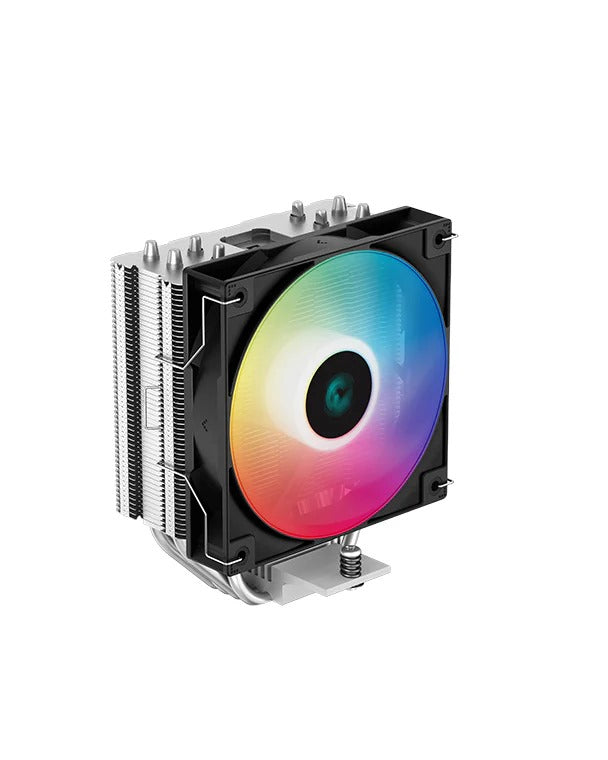

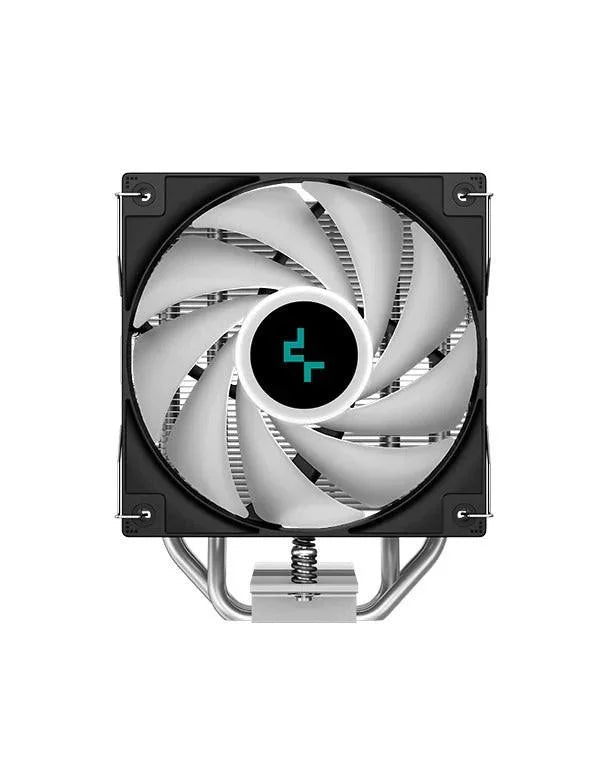

The DeepCool AG400 LED is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.The DeepCool AG400 LED is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.
STELLAR THERMAL PERFORMANCE

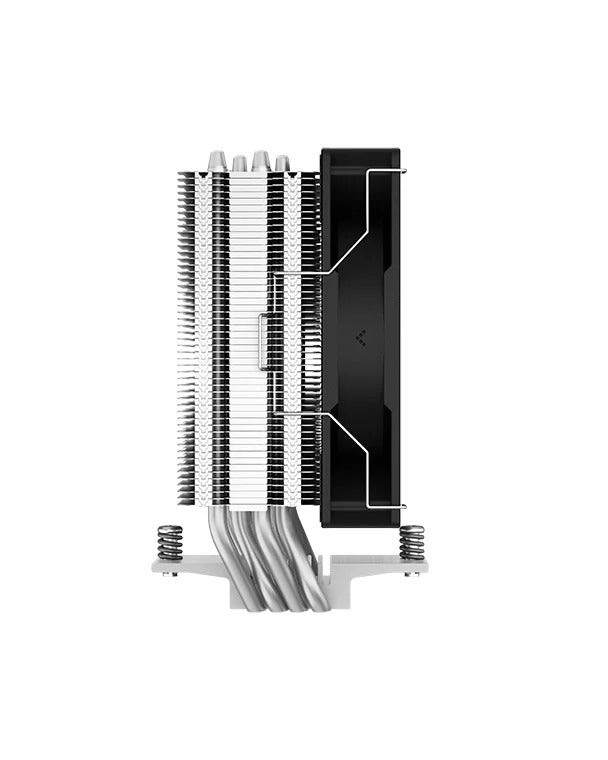

Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU.
When installing the AG400 LED, the fan does not need to be disassembled during the process, simplifying and saving time.
BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
75.89 CFM

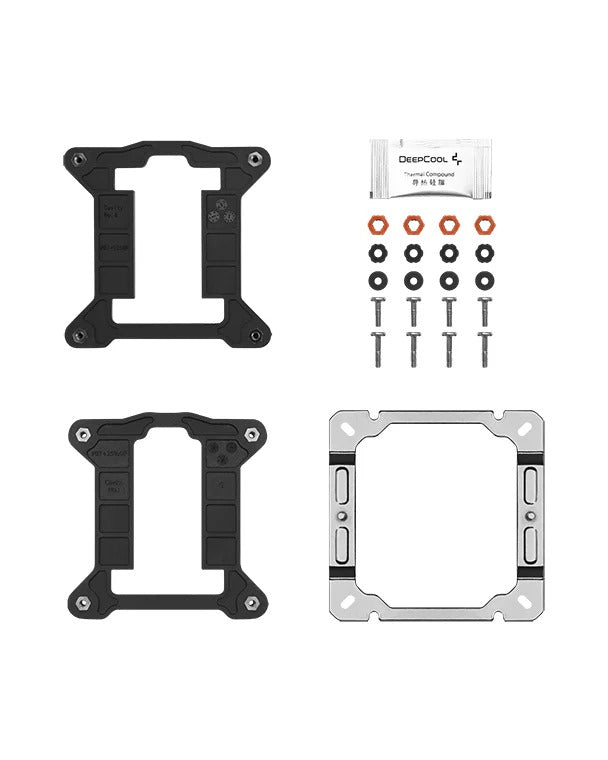

The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
Technical Spec
| Product Dimensions |
125×92×150 mm(L×W×H) |
| Heatsink Dimensions |
120×92×150 mm(L×W×H) |
| Net Weight |
614 g |
| Heatpipe |
Ø6 mm×4 pcs |

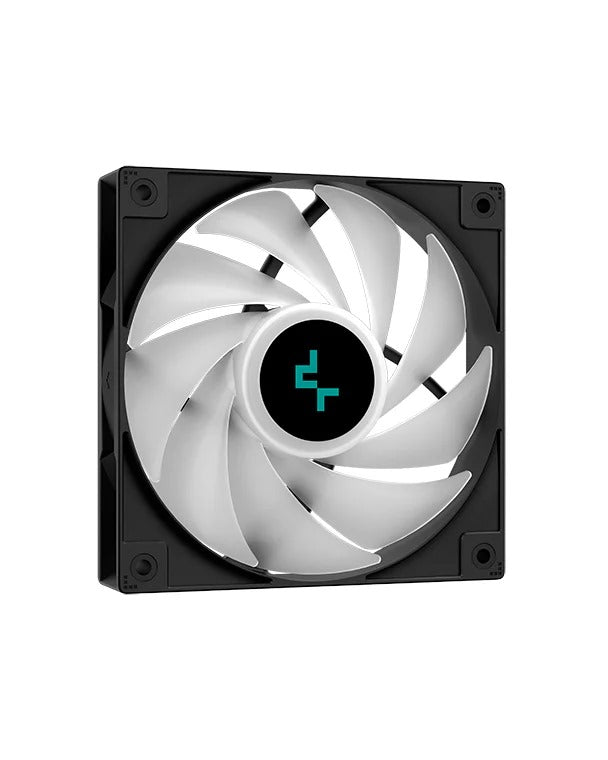

| Fan Dimensions |
120×120×25 mm(L×W×H) |
| Fan Speed |
500~2000 RPM±10% |
| Fan Airflow |
75.89 CFM |
| Fan Air Pressure |
2.53 mmAq |
| Fan Noise |
≤31.6 dB(A) |
| Fan Connector |
4-pin PWM |
| Bearing Type |
Hydro Bearing |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.28 A |
| Fan Power Consumption |
3.36 W |
| LED Type |
6-Color LED |
| EAN |
6933412727583 |
| P/N |
R-AG400-BKLNMC-G-1 |
